CNC Design Guidelines That Cut Machining Cost

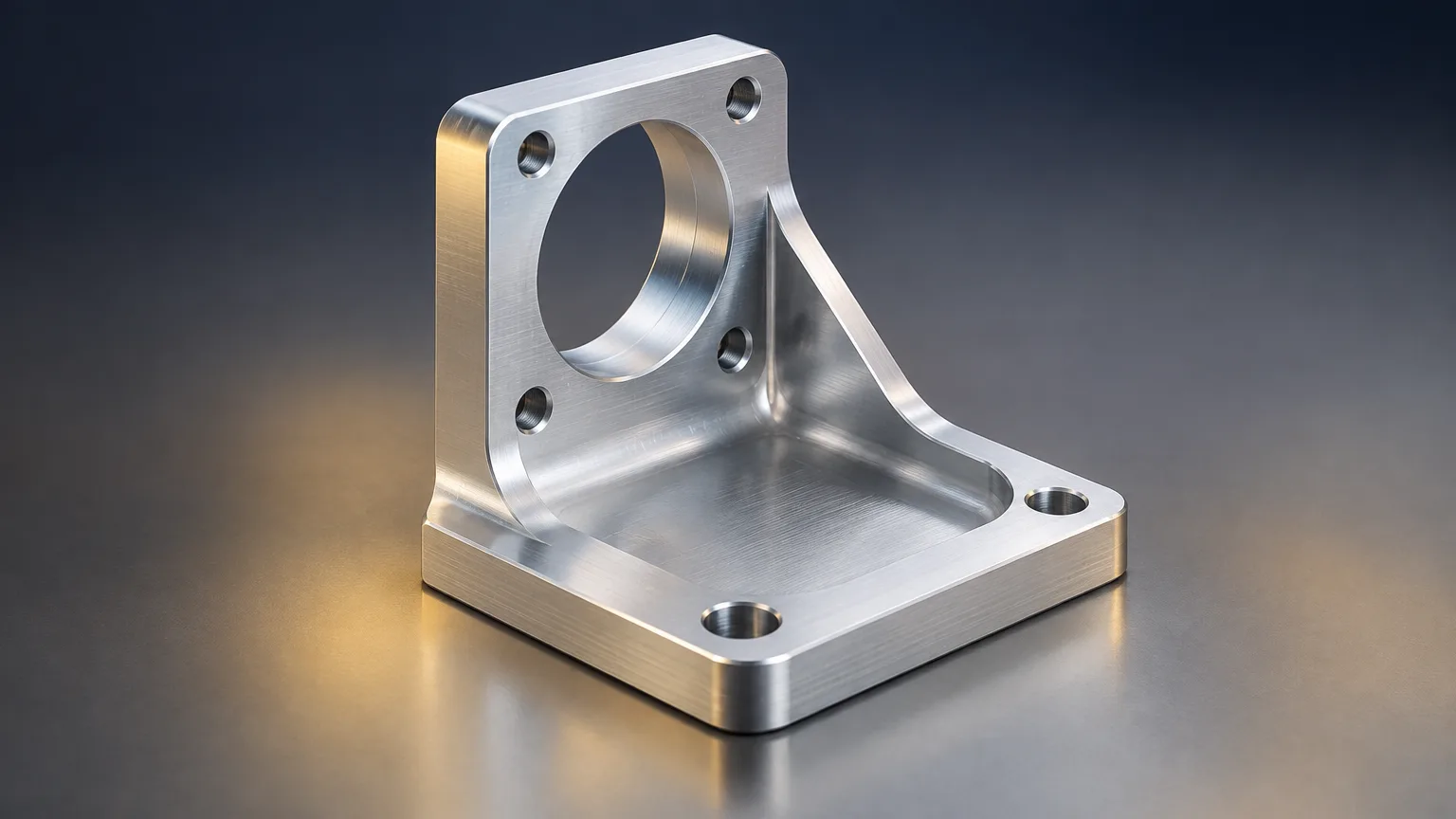

CNC design guidelines are a set of drawing and geometry rules that reduce machine time, setup time and inspection time without weakening the part. Precision CNC machining is computer-controlled removal of material from a workpiece using milling, turning, drilling, or related processes. Required accuracy must be defined on the drawing rather than assumed.

The rule that matters most is restraint. A general CNC dimensional tolerance of ±0.005 in (0.13 mm) is a commonly reported default, while precision CNC machining cost changes with tolerance: tighter tolerances can require slower cutting, extra passes, controlled environments, and more inspection. One supplier reports non-linear cost increases below ±0.005 in.

1. 1. Define function and critical features Mark which dimensions, fits and surfaces actually control function. Everything else can stay general. This list decides where tight tolerances are justified and where they only add cost.[7][10]
2. 2. Set tolerances and datums on the drawing Apply a general tolerance class for unspecified dimensions and feature-specific geometric tolerancing only where needed. ASME Y14.5 or ISO 1101 applies as specified by the drawing.[7][10]
3. 3. Choose the machining route Prismatic and contoured parts normally run on CNC milling; rotational parts such as shafts, bushings and threaded components run on CNC turning. Mill-turn combines both with fewer setups and improved feature alignment.
4. 4. Plan workholding and setups CNC milling requires workholding access, and deep cavities and thin walls increase cost and distortion risk. Fewer setups generally mean lower cost and better alignment.[1][8]
5. 5. Select material and stock Material drives cutting speed, tool wear and finishing. Work-hardening grades such as 304 stainless can increase machining difficulty, so confirm the grade before releasing the design.[3]
6. 6. Verify with inspection Tolerance class drives the inspection method and documentation. Verify material identity, grade, condition, and certificates, and request inspection reports, material records, and nonconformance records.

The route you choose changes which design guidelines apply. Milling rewards shallow, open geometry; turning rewards rotational symmetry; wire EDM rewards hard materials and narrow slots.

Feature-level tolerance reference

Tolerance is the clearest cost lever in CNC design guidelines. The table below lists commonly reported capability ranges; they are supplier references, not universal standards, and must be confirmed feature by feature.

Material choice sets cutting behavior, tool wear and dimensional response. Aluminum machines quickly; stainless steels and heat-treated alloys cost more time. Metal and plastic differ in stiffness, thermal expansion, cutting behavior, workholding, tool selection, and dimensional response, so supplier-specific limits should be verified.

The trade-off is straightforward: every guideline that lowers cost also lowers geometric freedom. Decide which features genuinely need that freedom before you tighten the drawing.

Tolerance rules

• Apply one general tolerance class to all noncritical dimensions and state it on the drawing.[1][7]
• Reserve tight milling or turning tolerances for features that control fit or function.[2]
• Use geometric tolerancing only where assembly genuinely requires it.[7][10]

Geometry and setup rules

• Keep pockets and cavities as shallow as function allows, and open them to the tool where possible.[1][8]
• Avoid thin, unsupported walls that deflect under clamping and cutting forces.[1][8]
• Design for one or two setups; every added setup adds time and alignment risk.
• Use standard drill and tap sizes, and keep thread depth within reason.[8]
• Add realistic corner radii instead of sharp internal corners; radius tools cut faster.

Drawing and file rules

• Send a native or neutral CAD file plus a controlled drawing with material, grade, tolerances, datums, finish, threads, quantity and inspection requirements.
• State the applicable standard for unspecified tolerances and geometric controls.[7][10]
• Note the critical-to-function dimensions so the supplier can plan inspection.

These guidelines pay off wherever parts repeat. Prototype work prioritizes speed and flexibility; production work emphasizes repeatability, process control, fixtures, and optimized cycle time, so a rule that saves seconds matters at volume.

• Automotive brackets, housings and powertrain-adjacent components
• Fixtures and tooling for internal production lines
• Shafts, bushings and threaded components on turning routes
• Pneumatic and hydraulic manifolds with drilled passages[8]
• Wear parts, guides and electrical-mechanical components in engineering plastics

Machining is also compared directly against additive routes. CNC machining vs 3D printing is a simple split: machining removes material and generally provides broad material choice, strong properties and precise finished surfaces; 3D printing builds parts and may reduce tooling for complex prototypes.

CNC machining cost is driven by tolerance, setup count, part geometry, material, finishing and inspection. Precision CNC machining uses tighter feature requirements, more controlled setups, specialized inspection, and potentially slower feeds and additional finishing passes, which is why tolerance decisions belong in the design stage.[3]

Comparing suppliers on capability, not price alone

When you compare CNC machining companies, compare verified process capability, material traceability, inspection equipment, certifications, capacity, lead time, corrective-action practice, and comparable sample work. Ask for inspection reports, material records, and nonconformance records. Confirm that the drawing tolerance class is one the supplier can hold on your specific features.
