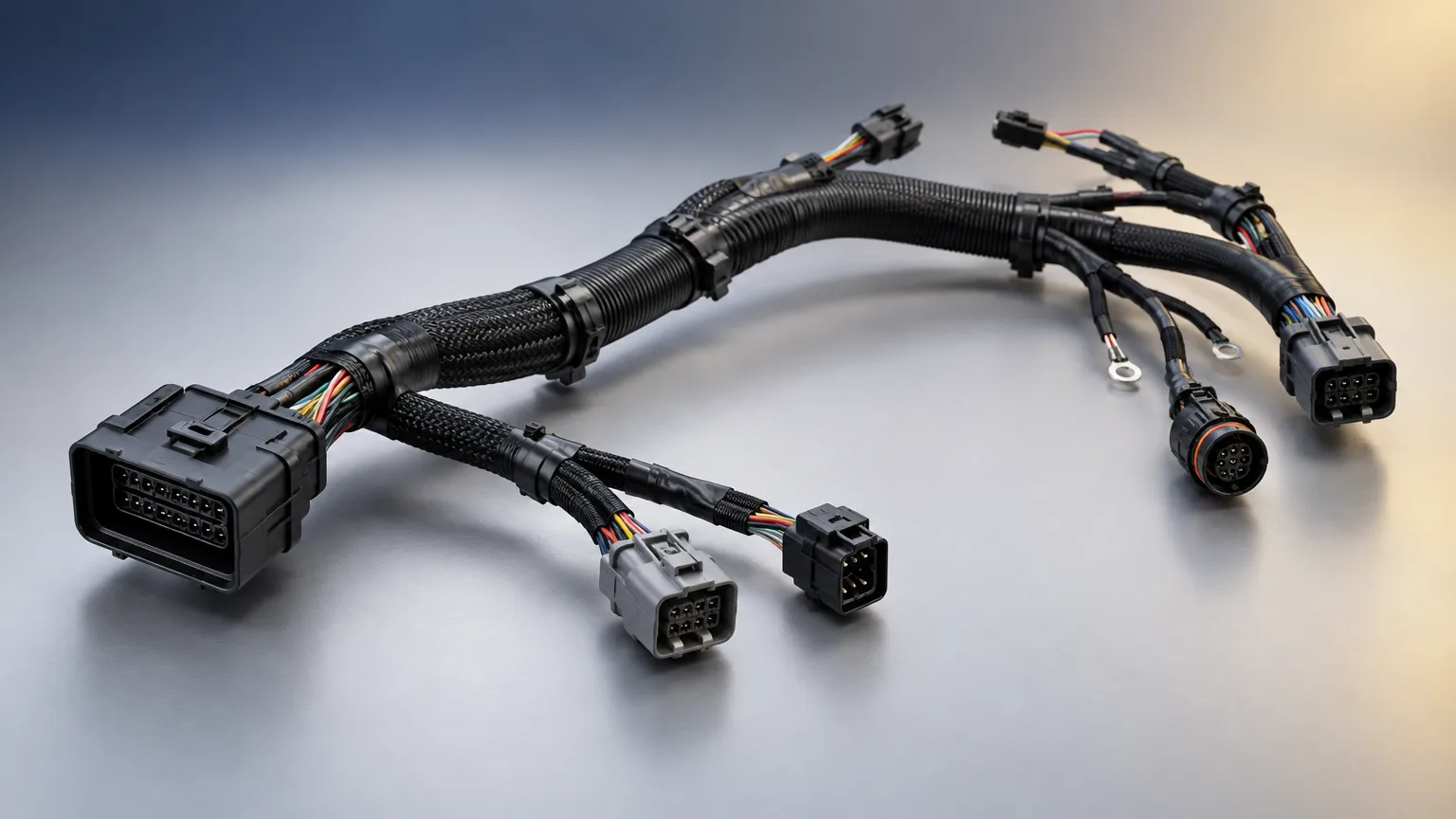

Wire Harness Assembly for Automotive Programs

Wire harness assembly is the production of a cable harness assembly to a released drawing: cable is cut to length, terminals are crimped, seals and connectors are fitted, branches are bundled, and the finished harness is tested. It is a build-to-print service, not a catalog item, so the drawing and bill of materials define the part.

The service fits engineers and procurement teams who need automotive wire harnesses for a vehicle program, a test fleet, or a service part. It is the right route when connector families, wire gauges, branch lengths and test evidence must be controlled and repeatable across builds.

When to use a harness assembly supplier

• You have a drawing, a wire list or a sample harness that can be documented.
• The build needs crimped terminals, sealed connectors or overmolded joints rather than loose cable.
• Continuity, pull strength or dimensional checks must be recorded for each unit.
• Volume is moving from a bench prototype to a repeatable batch or production program.
• The program falls under IATF 16949 and customer-specific requirements, so process control and traceability matter.

Wire harness assembly is the process of cutting, terminating, routing and testing cables into one bundle that connects vehicle electrical components. In automotive parts manufacturing, the harness is built to a drawing, wire list and connector schedule, then tested before delivery.

The same sequence applies in auto parts manufacturing, car parts manufacturing and vehicle parts manufacturing programs. Automotive component manufacturers agree the drawing package and test plan before cutting starts.

1. 1. Drawing and BOM review The supplier reviews the drawing, wire list, connector schedule and bill of materials. Missing gauges, terminal part numbers or branch lengths are flagged before quoting.
2. 2. Material and component verification Incoming cable, terminals, seals, connectors and sleeving are checked against the specification, with certification review where required. Traceability starts here.
3. 3. Cutting and stripping Cable is cut to the wire-list lengths and stripped to the length the terminal requires, typically about 0.2 in (5 mm). Strip length and cut length most often drive rework.
4. 4. Crimping and seal insertion Terminals are crimped to the conductor and insulation, and seals are inserted where the connector family calls for them. Crimp height, pull strength and visual criteria follow the drawing and control plan.
5. 5. Connector loading and routing Leads are loaded into the cavity positions shown on the drawing, then routed and bundled into branches. Branch lengths, breakouts and tie positions follow the drawing.
6. 6. Joining and protection Splices, welds, bonding or overmolding are added where specified, and the bundle is protected with tape, conduit, sleeving or boots. Joint strength, distortion and traceability require validation.
7. 7. Electrical and dimensional test Continuity, short and miswire checks run against the wire list, with pull tests and dimensional checks on critical features. Results are recorded for the build.
8. 8. Inspection, packing and delivery Final inspection confirms the harness matches the approved drawing and test record. Parts are packed to protect connectors and branches, then shipped to the purchase-order location.

Automotive components such as harnesses use material families set by the drawing and the vehicle environment. The table lists families that appear in harness work; grades are not verified here and must be specified by the drawing.

Finishes and protection used on harness builds

• Terminal plating: tin, silver or gold per the terminal specification.
• Bundle protection: PVC tape, cloth tape, conduit, braided sleeving or heat-shrink boots.
• Sealing: grommets, cavity seals and sealed connectors for splash or under-hood zones.
• Strain relief: overmolding, boots or clips where the drawing calls out a bend or pull requirement.
• Marking: labels, tags or print for circuit identification and traceability.

Wire harness assembly specifications are set by the drawing, the process and the customer's requirements. The table lists the parameters to define before a harness is quoted and built.

Most harness cost is fixed by the drawing, not by the build. These design choices reduce tooling, handling and test time without weakening the part.

• Standardize connector families and terminal part numbers across the harness so crimp tooling and applicators are shared.
• Request the tightest tolerance needed for function, not the tightest possible tolerance; the supplier should confirm capability for each critical feature.
• Keep branch lengths and breakouts on a clean grid so cut lengths and fixtures stay simple.
• Avoid unnecessary splices and welds; each joint adds validation, distortion risk and traceability work.
• Use one wire gauge per circuit where the current allows, rather than mixing gauges that complicate stripping and crimping.
• Place labels and clips where they can be applied after bundling, not inside a sealed or overmolded section.
• Define the test plan with the drawing: continuity only, or continuity plus pull and dimensional checks.

Automotive wire harness work covers body, powertrain, chassis and interior circuits. The examples below show the range of cable harness assembly that can be quoted from a drawing.

• Engine and powertrain harnesses with sealed connectors and high-temperature cable.
• Body and door harnesses with grommets, boots and branch routing through hinge zones.
• Instrument-panel and console harnesses with molded connectors and tight bend radii.
• Battery and high-voltage cable assemblies with strain relief and shielding where specified.
• Sensor and actuator pigtails with overmolded joints and pull-tested crimps.
• Lighting, trailer and accessory harnesses for aftermarket and service programs.
• Test-fleet and prototype harnesses built before production tooling is committed.

Industries served include passenger vehicle, commercial vehicle, off-highway and specialty vehicle programs, plus aftermarket and performance parts where low-volume economics matter.

No reliable universal price exists for a harness. Cost is built from the drawing, the components and the evidence the program requires, so two harnesses with the same branch count can price very differently.

• Cable type, gauge and length: total cut length and shielding or high-temperature cable raise material cost.
• Connector and terminal families: sealed, high-cavity or specialty connectors cost more than standard unsealed parts.
• Crimp and seal count: every termination adds labor, tooling and inspection time.
• Splices, welds and overmolding: each joint adds process steps and validation.
• Test and inspection level: continuity only versus continuity plus pull, dimensional and traceability records.
• Tooling and fixtures: applicators, test boards and build fixtures are amortized over the order quantity.
• Quantity and repeatability: higher volumes spread setup and tooling; prototypes carry more setup per unit.
• Logistics and packing: branch protection, reel or rack packing and delivery location affect cost.

Ordering wire harness assembly through SR gives you one contact for the program while a vetted network of automotive component manufacturers builds the parts. SR is a manufacturing broker and does not own factories or machines. It collects quotes, manages quality and inspection, and delivers the parts.

Standards such as IATF 16949, APQP, FMEA, SPC and PPAP are applied as supplier and program requirements where the drawing or customer calls for them.
