Prototype Engineering for Hardware Startups

Prototype engineering stalls when design intent, supplier capability and test objectives are not aligned before quoting. Startups feel this most in the gap between a working bench build and a repeatable unit.

• Unclear test objective: teams specify tight tolerances or exotic materials without defining what the prototype must prove.
• Fragmented supply chain: one vendor for CNC, another for sheet metal, a third for PCB assembly, with no single owner of fit and function.
• Missing documentation: incomplete CAD, no drawing revision level, or material callouts left open invite requotes and delays.
• Prototype-to-production drift: a part that passes at low volume can fail once tooling, plating or soldering changes.
• Uncontrolled electronics workmanship: soldering, rework and electrical test criteria are often undefined at prototype stage.

SR sources both mechanical and electronic prototype hardware, so fit, finish and function can be validated together. Common requests fall into four groups.

Assemblies are quoted as builds, not just parts, when the startup needs a working unit for engineering validation builds. Electronics contract manufacturing scope can include PCB fabrication, component sourcing, assembly, testing and rework support.

Prototype engineering is the design, fabrication, and evaluation of representative parts, assemblies, or electronic products before production. Process choice follows the test objective: geometry, structural behavior, or production-like material performance.

Materials and grades

Specifications and tolerances

Prototype engineering follows the same drawing and workmanship standards as production; the difference is volume, not discipline. SR expects suppliers in its network to work to these standards where they apply.

Where a program calls for automotive-grade controls, an electronics contract manufacturer may be asked to work under IATF 16949 and submit PPAP documentation. SR does not operate plants or machines; it selects suppliers, manages the build and verifies delivered parts.

Quality is planned at quote stage, when the inspection method and evidence are agreed. For a first-off part this usually means a first article inspection report tied to the drawing.

1. Review CAD, drawings, revisions and material callouts before release.
2. Verify material certificates against the specified grade.
3. Inspect first articles against the drawing and its tolerance scheme.
4. For electronics, control soldering, workmanship, electrical tests and traceability.
5. Record rework and repair per the applicable IPC rework standard.

Typical deliverables on a prototype order include dimensional inspection reports, first article inspection data, material certificates and, where the program requires it, PPAP documentation. Traceability is set at build level and connects the delivered part to its material batch and inspection record.

The prototype path moves from one-off validation parts through small engineering builds to production tooling. Each stage should answer a specific question before the next is funded.

1. Design and DFM review Confirm geometry, material, tolerances and inspection needs against the test objective.
2. Validation build Produce representative units by CNC, sheet metal, printing, casting or electronics assembly.
3. Engineering test Test fit, function, thermal and electrical behavior, then revise the design.
4. Small-batch bridge Cover pilot demand with routes such as vacuum casting or soft tooling.
5. Production release Move to production tooling once repeatability and unit cost targets are agreed.

An example prototype engineering project for a hardware startup combines several process routes managed as one build, so enclosure, structure and electronics are validated together.

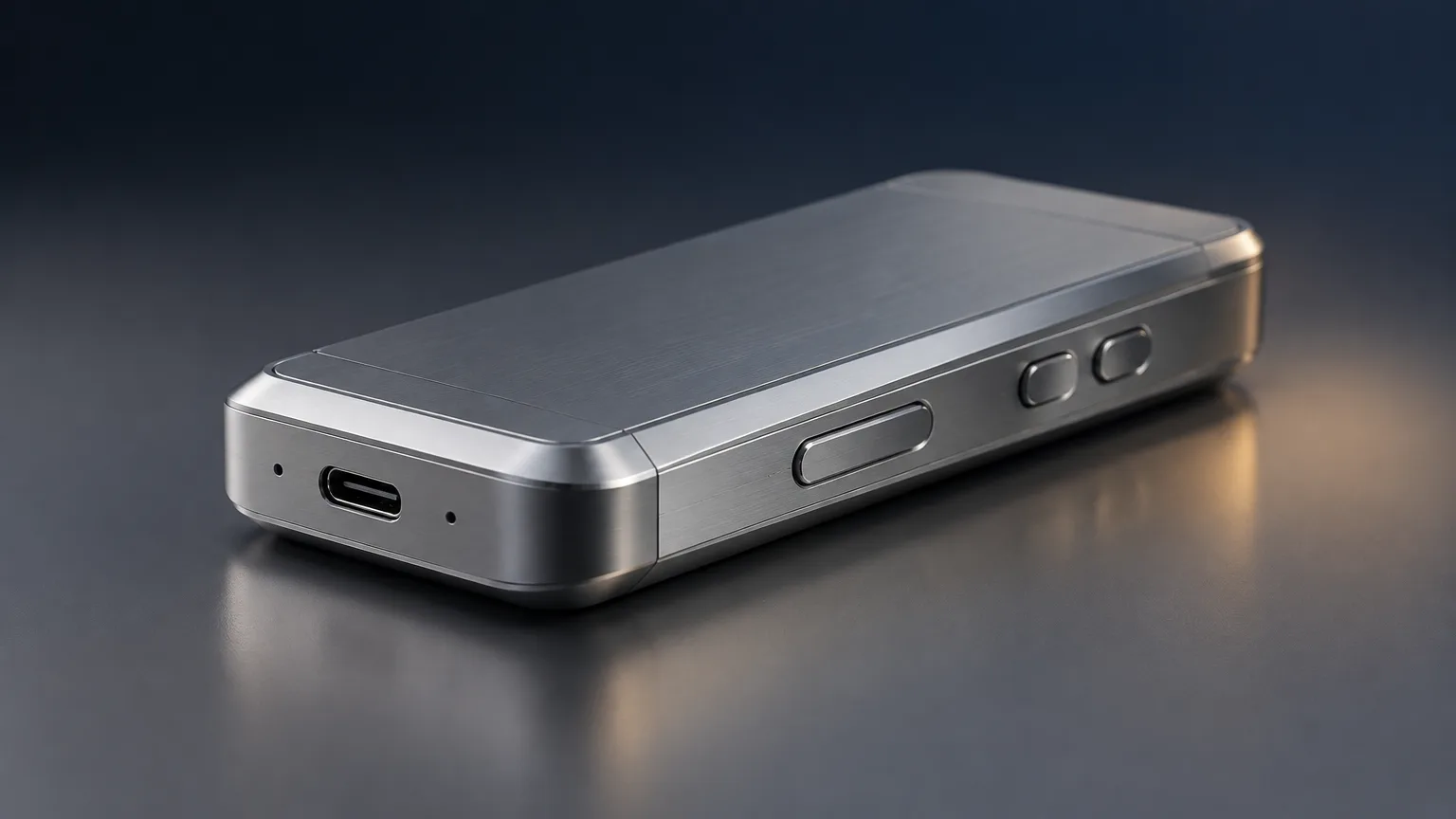

• Aluminum 6061-T6 housings machined to a functional tolerance scheme on interface features.
• Sheet-metal internal brackets and a chassis plate for structural mounting.
• Rigid FR-4 boards assembled, tested and reworked under IPC workmanship criteria.
• Dimensional and first article inspection data returned with the units.

Send your design package and test objective; SR returns quotes from the vetted supplier network, usually within 5-7 working days. Contact killol@sourcingrepository.com or request a quote through the site.

• Native CAD plus neutral CAD (STEP) for all parts.
• Drawing PDFs with revision level, GD&T and critical dimensions marked.
• Material, finish and color callouts, including production-equivalent requirements.
• Quantities per part and the scheduled build date.
• Inspection and test requirements, including any electrical test or PPAP need.
• For electronics: approved component list, Gerbers, and workmanship standard.

SR is based at 201 SG Mall, Ahmedabad. SR does not own factories or machines; it collects quotes, manages quality and inspection, and delivers the finished parts to you.
